Rohrkabelschuhe F-Serie

Eigenschaften

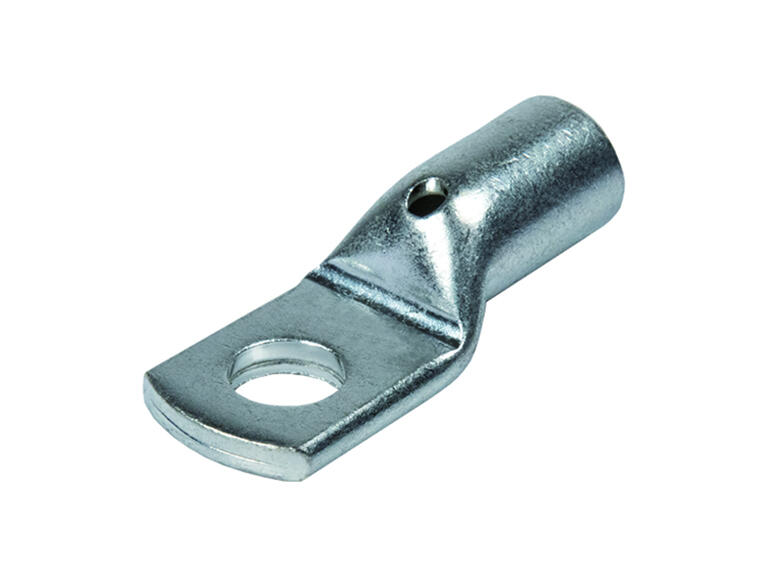

Rohrkabelschuh INTERCABLE Standard, nach UL-Ausführung, für fein- und feinstdrähtige Leiter, Werkstoff gemäss DIN EN 13600, Oberfläche galvanisch verzinnt

zugelassen für die Wehrtechnik und Kerntechnik

Technische Daten

Rohrkabelschuh F-Reihe
Anschlusswinkel
180° (horizontal)
Flanschform
Ringform
Leiter-Klasse
verschiedene
Schmale Flanschausführung
Nein
Isoliert
Nein
Mit Sichtloch
Ja
Werkstoff
Kupfer
Oberflächenschutz
verzinnt
Anzahl der Befestigungslöcher
1
Marke
Intercable
Menge Art.Nr. E-Nummer Lager EAN Nennquerschnitt Anschlussgewindemaß (metrisch) d1 a b d2 d3 l VE Einheit
ICF105SL 156371027 8014212506504 10 mm² 5 5 mm 12 mm 12 mm 5.3 mm 8 mm 23 mm 1 Stk
ICF106SL 156371037 8014212381262 10 mm² 6 5 mm 12 mm 12 mm 6.4 mm 8 mm 25 mm 1 Stk
ICF108SL 156751047 8014212381279 10 mm² 8 5 mm 12 mm 15 mm 8.4 mm 8 mm 28 mm 1 Stk
ICF1010SL 156371057 8014212381248 10 mm² 10 5 mm 12 mm 18 mm 10.5 mm 8 mm 31 mm 1 Stk
ICF1012SL 156371067 8014212381255 10 mm² 12 5 mm 12 mm 20 mm 13 mm 8 mm 32 mm 1 Stk
ICF165SL 156371127 8014212470072 16 mm² 5 6 mm 13 mm 14 mm 5.3 mm 9 mm 25.5 mm 1 Stk
ICF166SL 156371137 8014212290991 16 mm² 6 6 mm 13 mm 14 mm 6.4 mm 9 mm 27 mm 1 Stk
ICF168SL 156371147 8014212381316 16 mm² 8 6 mm 13 mm 15 mm 8.4 mm 9 mm 29.5 mm 1 Stk
ICF1610SL 156371157 8014212381293 16 mm² 10 6 mm 13 mm 18 mm 10.5 mm 9 mm 32 mm 1 Stk
ICF1612SL 156371167 8014212381309 16 mm² 12 6 mm 13 mm 20 mm 13 mm 9 mm 33 mm 1 Stk
ICF255SL 156371227 8014212506511 25 mm² 5 7.7 mm 16 mm 16 mm 5.3 mm 9.2 mm 32 mm 1 Stk
ICF256SL 156371237 8014212291004 25 mm² 6 7.7 mm 16 mm 16 mm 6.4 mm 10.7 mm 32 mm 1 Stk
ICF258SL 156371247 8014212381378 25 mm² 8 7.7 mm 16 mm 16 mm 8.4 mm 10.7 mm 34 mm 1 Stk
ICF2510SL 156371257 8014212381354 25 mm² 10 7.7 mm 16 mm 18 mm 10.5 mm 10.7 mm 35 mm 1 Stk
ICF2512SL 156371267 8014212381361 25 mm² 12 7.7 mm 16 mm 20 mm 13 mm 10.7 mm 36 mm 1 Stk
ICF356SL 156371337 8014212381408 35 mm² 6 9.2 mm 18 mm 18 mm 6.4 mm 12.4 mm 36 mm 1 Stk
ICF358SL 156371347 8014212381415 35 mm² 8 9.2 mm 18 mm 18 mm 8.4 mm 12.4 mm 36 mm 1 Stk
ICF3510SL 156371357 8014212381385 35 mm² 10 9.2 mm 18 mm 18 mm 10.5 mm 12.4 mm 38 mm 1 Stk
ICF3512SL 156371367 8014212381392 35 mm² 12 9.2 mm 18 mm 23 mm 13 mm 12.4 mm 40 mm 1 Stk
ICF3516SL 156371387 8014212506528 35 mm² 16 9.2 mm 18 mm 26 mm 17 mm 12.4 mm 45 mm 1 Stk
ICF506SL 156371437 8014212381439 50 mm² 6 11.2 mm 21 mm 22 mm 6.4 mm 14.5 mm 42 mm 1 Stk
ICF508SL 156371447 8014212381453 50 mm² 8 11.2 mm 21 mm 22 mm 8.4 mm 14.8 mm 42 mm 1 Stk
ICF5010SL 156371457 8014212381422 50 mm² 10 11.2 mm 21 mm 22 mm 10.5 mm 14.8 mm 43 mm 1 Stk
ICF5012SL 156371467 8014212304032 50 mm² 12 11.2 mm 21 mm 23 mm 13 mm 14.8 mm 44 mm 1 Stk
ICF5014SL 156371477 8014212506535 50 mm² 14 11.2 mm 21 mm 25 mm 15 mm 14.8 mm 45.5 mm 1 Stk
ICF5016SL 156371487 8014212506542 50 mm² 16 11.2 mm 21 mm 28 mm 17 mm 14.8 mm 48.5 mm 1 Stk
ICF706SL 156371537 8014212506559 70 mm² 6 13.5 mm 23 mm 25 mm 6.4 mm 17.5 mm 46 mm 1 Stk
ICF708SL 156371547 8014212381477 70 mm² 8 13.5 mm 26 mm 25 mm 8.4 mm 17.5 mm 45.5 mm 1 Stk
ICF7010SL 156371557 8014212304049 70 mm² 10 13.5 mm 23 mm 25 mm 10.5 mm 17.5 mm 47 mm 1 Stk
ICF7012SL 156371567 8014212381460 70 mm² 12 13.5 mm 23 mm 26 mm 13 mm 17.5 mm 47 mm 1 Stk
ICF7016SL 156371587 8014212506566 70 mm² 16 13.5 mm 23 mm 28 mm 17 mm 17.5 mm 50 mm 1 Stk
ICF7020SL 156371597 8014212506573 70 mm² 20 13.5 mm 23 mm 31 mm 21 mm 17.5 mm 54.5 mm 1 Stk
ICF956SL 156371637 8014212506580 95 mm² 6 15.5 mm 26 mm 29 mm 6.4 mm 20 mm 50.5 mm 1 Stk
ICF958SL 156371647 8014212381507 95 mm² 8 15.5 mm 26 mm 29 mm 8.4 mm 20 mm 50.5 mm 1 Stk
ICF9510SL 156371657 8014212343024 95 mm² 10 15.5 mm 26 mm 29 mm 10.5 mm 20 mm 53 mm 1 Stk
ICF9512SL 156371667 8014212381484 95 mm² 12 15.5 mm 26 mm 29 mm 13 mm 20 mm 52.5 mm 1 Stk
ICF9516SL 156371687 8014212439062 95 mm² 16 15.5 mm 26 mm 29 mm 17 mm 20 mm 55 mm 1 Stk
ICF9520SL 156371697 8014212381491 95 mm² 20 15.5 mm 26 mm 35 mm 21 mm 20 mm 60 mm 1 Stk
ICF12010SL 156372057 8014212304063 120 mm² 10 16.8 mm 29 mm 31 mm 10.2 mm 21.3 mm 56.5 mm 1 Stk
ICF12012SL 156372067 8014212381286 120 mm² 12 16.8 mm 29 mm 31 mm 13 mm 21.3 mm 56 mm 1 Stk
ICF12016SL 156372087 8014212304056 120 mm² 16 16.8 mm 29 mm 31 mm 17 mm 21.3 mm 58 mm 1 Stk
ICF12020SL 156372097 8014212506597 120 mm² 20 16.8 mm 29 mm 35 mm 21 mm 21.3 mm 63 mm 1 Stk
ICF15010SL 156372157 8014212455987 150 mm² 10 19 mm 30 mm 35 mm 10.5 mm 34 mm 59 mm 1 Stk
ICF15012SL 156372167 8014212335616 150 mm² 12 19 mm 30 mm 35 mm 13 mm 24 mm 58.5 mm 1 Stk
ICF15016SL 156372187 8014212506603 150 mm² 16 19 mm 30 mm 35 mm 17 mm 24 mm 63 mm 1 Stk
ICF15020SL 156372197 8014212506610 150 mm² 20 19 mm 90 mm 35 mm 21 mm 24 mm 66 mm 1 Stk
ICF18510SL 156372257 8014212506627 185 mm² 10 21 mm 35 mm 38 mm 10.5 mm 26 mm 67 mm 1 Stk
ICF18512SL 156372267 8014212381323 185 mm² 12 21 mm 35 mm 38 mm 13 mm 26 mm 67 mm 1 Stk
ICF18516SL 156372287 8014212381330 185 mm² 16 21 mm 35 mm 38 mm 17 mm 26 mm 69.5 mm 1 Stk
ICF18520SL 156372297 8014212506634 185 mm² 20 21 mm 35 mm 38 mm 21 mm 26 mm 71 mm 1 Stk
ICF24010SL 156372457 8014212506641 240 mm² 10 24 mm 42 mm 44 mm 10.5 mm 30 mm 79.5 mm 1 Stk
ICF24012SL 156372467 8014212381347 240 mm² 12 24 mm 42 mm 44 mm 13 mm 30 mm 82 mm 1 Stk
ICF24014SL 156372477 8014212506658 240 mm² 14 24 mm 42 mm 44 mm 15 mm 27 mm 84 mm 1 Stk
ICF24016SL 156372487 8014212297785 240 mm² 16 24 mm 42 mm 44 mm 17 mm 30 mm 85 mm 1 Stk
ICF24020SL 156372497 8014212506665 240 mm² 20 24 mm 42 mm 44 mm 21 mm 30 mm 85 mm 1 Stk
ICF30012SL 156372667 8014212506672 300 mm² 12 27.5 mm 47 mm 49 mm 13 mm 33.5 mm 92 mm 1 Stk
ICF30016SL 156372687 8014212506689 300 mm² 16 27.5 mm 47 mm 49 mm 17 mm 33.5 mm 92 mm 1 Stk
ICF30020SL 156372697 8014212506696 300 mm² 20 27.5 mm 47 mm 49 mm 21 mm 33.5 mm 92 mm 1 Stk
